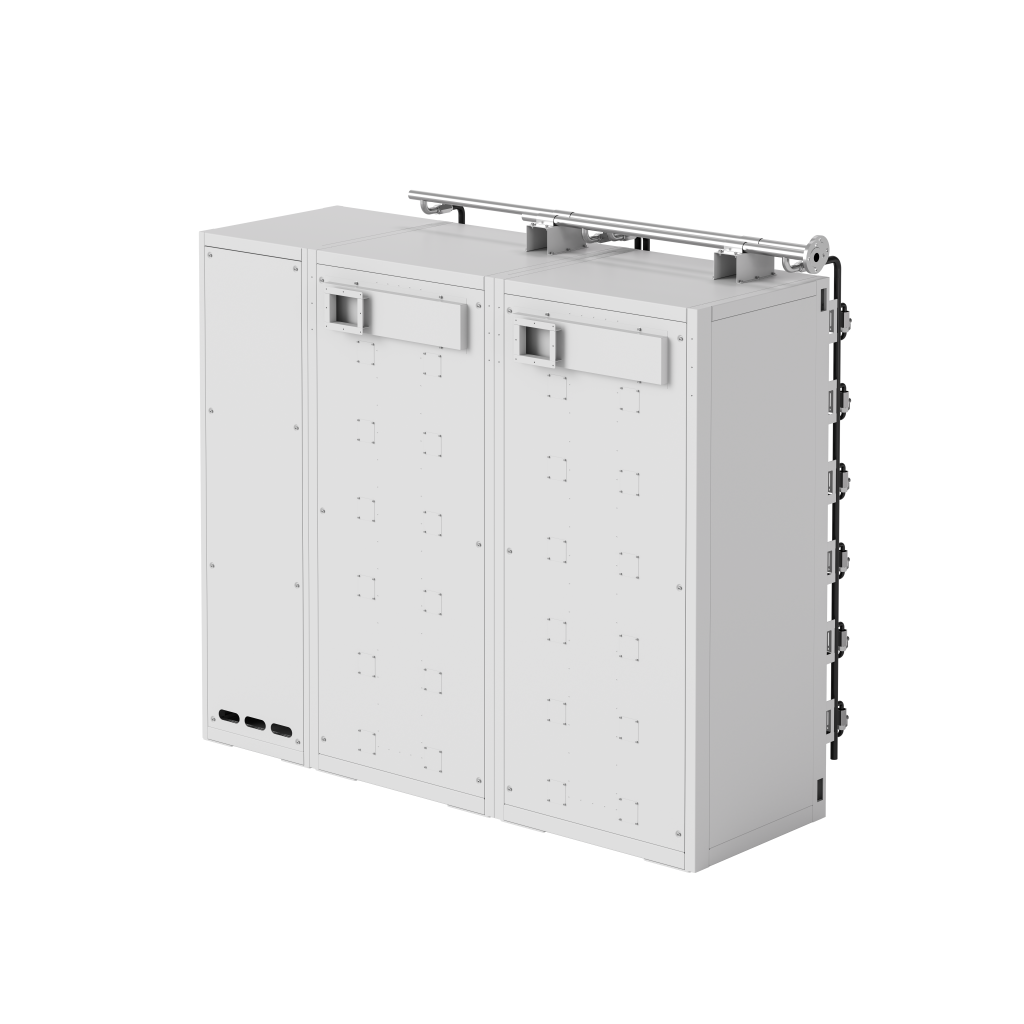

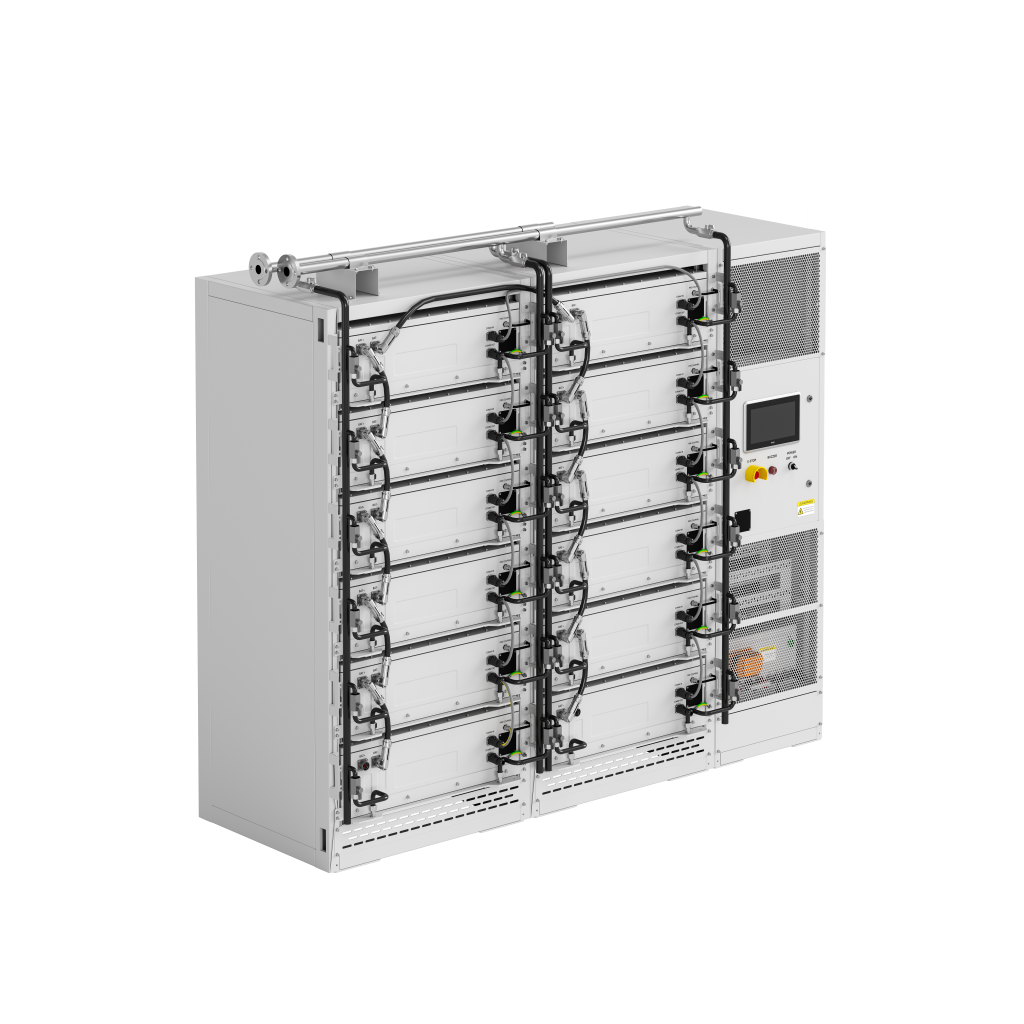

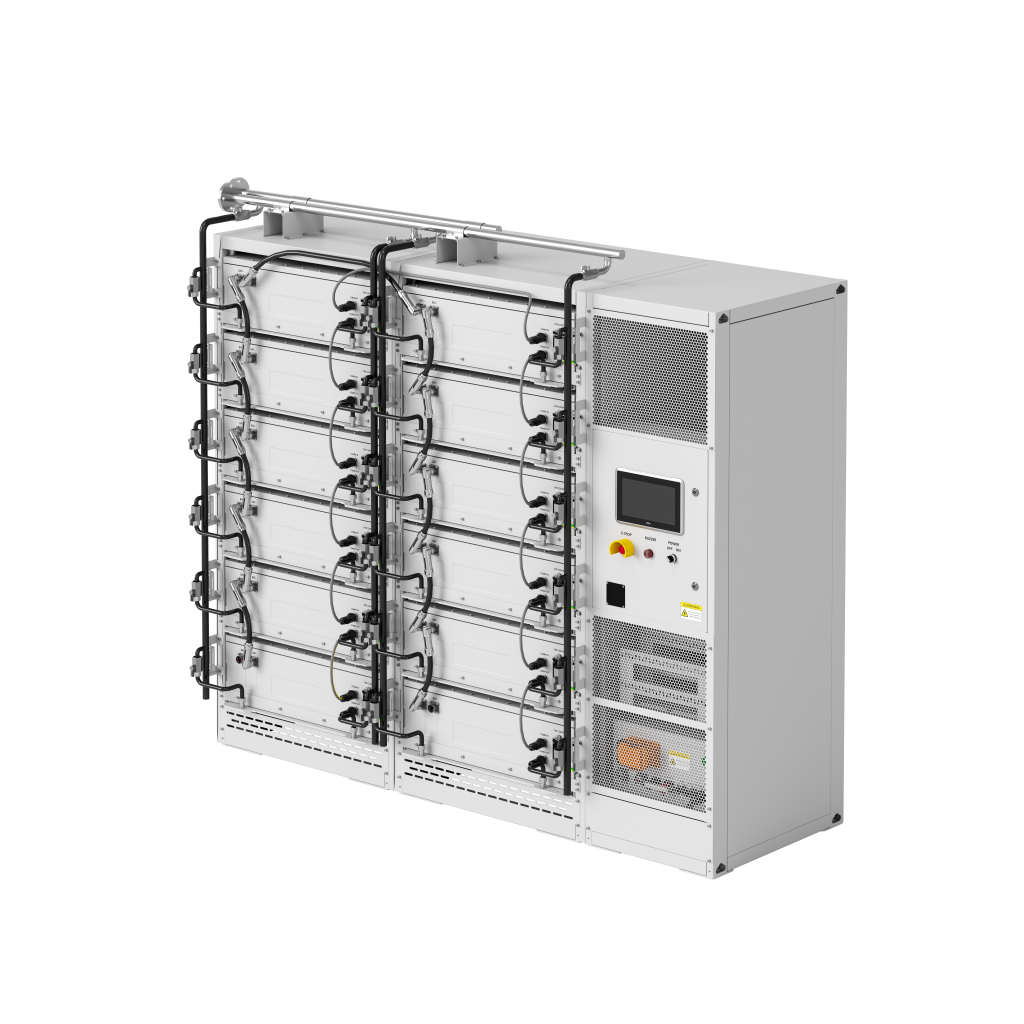

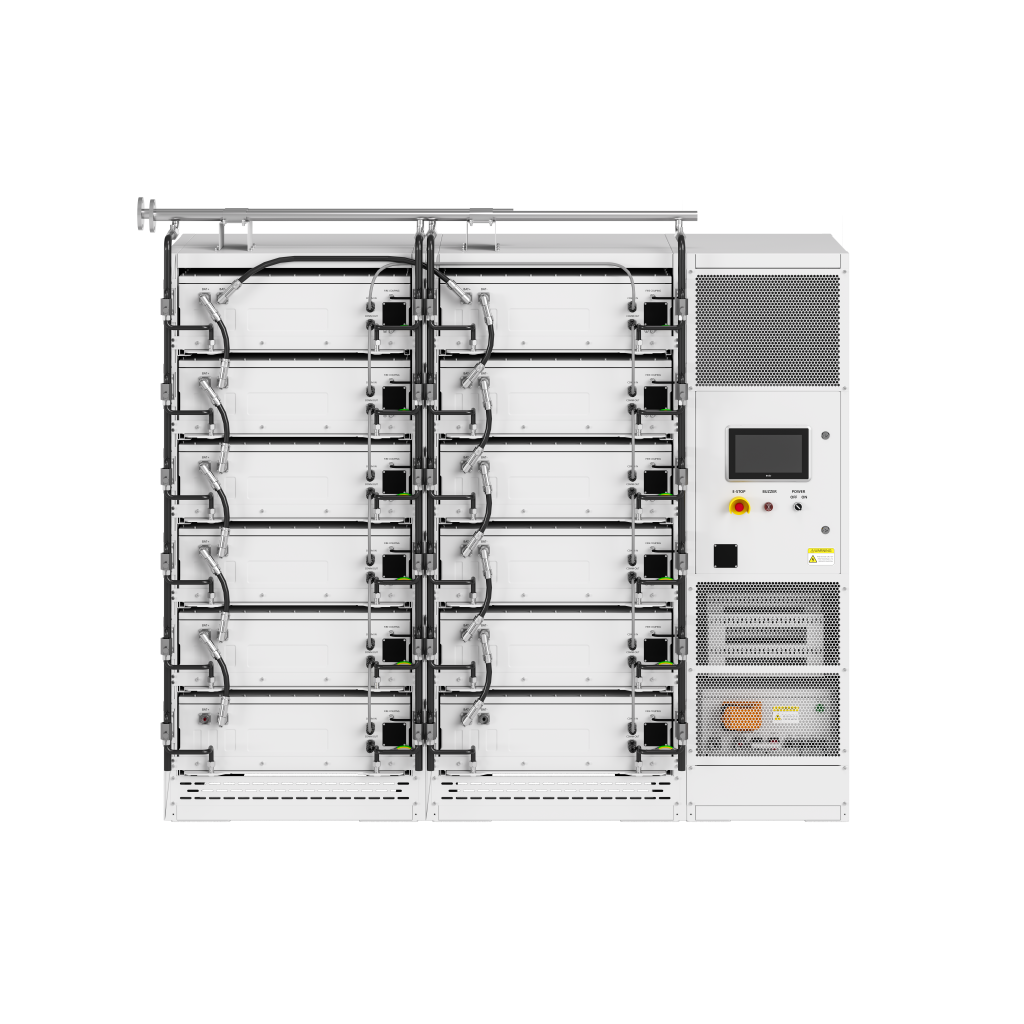

RS-J317LF-001
Racern's most distinguished products
RS-J317LF-001
With a maximum operating voltagereaching up to DC 1000V and modules capable of drawing currents up to 300A, it proves itselfsuitable for high-capacity energy solutions.
Technical Specifications
| Nominal Voltage (V) | 1081.9 |
| Voltage Range (V) | 840~1226.4 |
| Nominal Energy (kWh) | 343.0 (14 battery modules in series) |
| Standard Charge/Discharge Current (A) | 158.5 |
| Maximum Continuous Charge/Discharge Current (A) | 300 |
| Operating Temperature | Charge: -5℃~65℃ | Discharge: -35℃~65℃ |
| Storage Requirements | Temperature: -40℃~60℃ | Humidity: 5%～95% |
| The storage battery shall be stored in a dry, ventilated and cool environment to avoid direct sunlight, high temperature, corrosive gas, violent vibration, and mechanical impact. | |
| External Communication Port | CAN / RS485 / LAN |
| Class Compliance | DNV |
| Explosion-proof Measures | Installation of explosion-proof valve |
| Cooling Method | Liquid Cooling |
| Leak detection | Yes |
| Note | One BABOX manages 6 strings in parallel at max |
