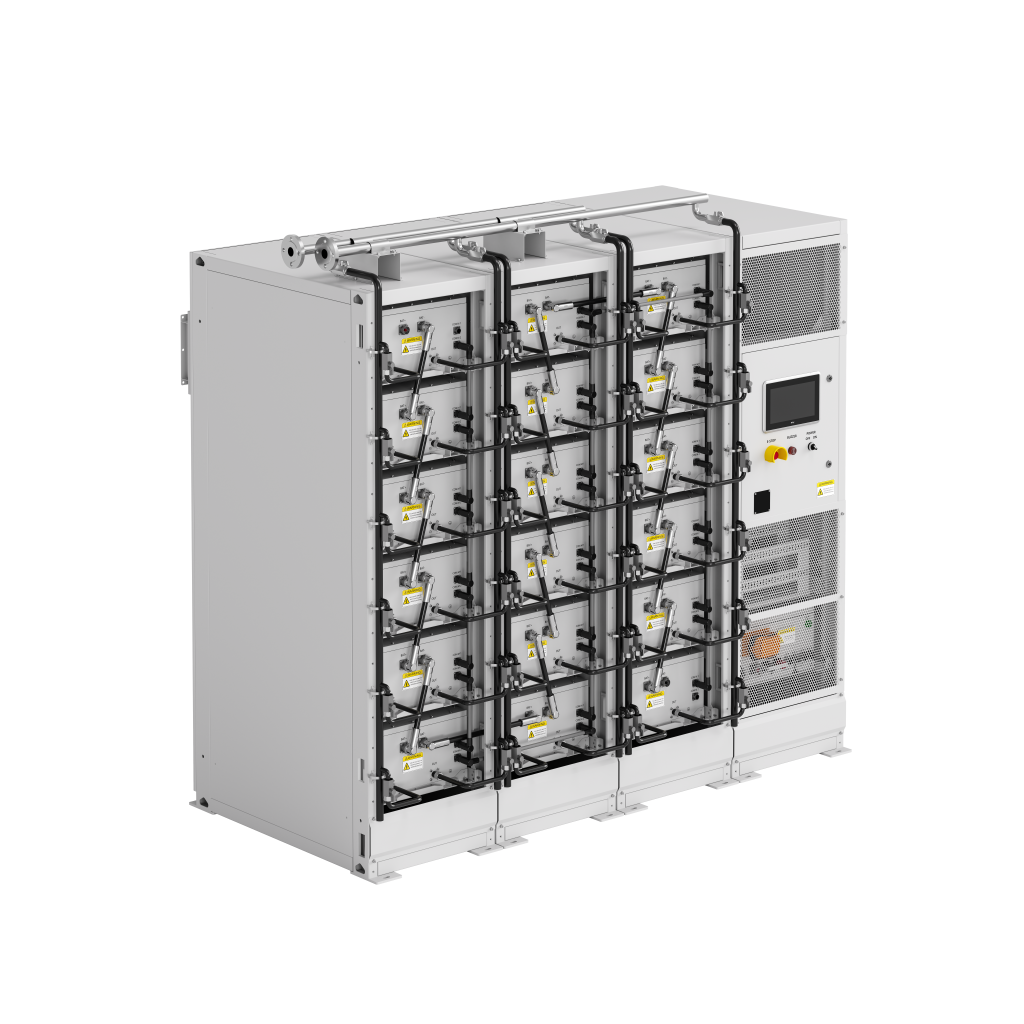

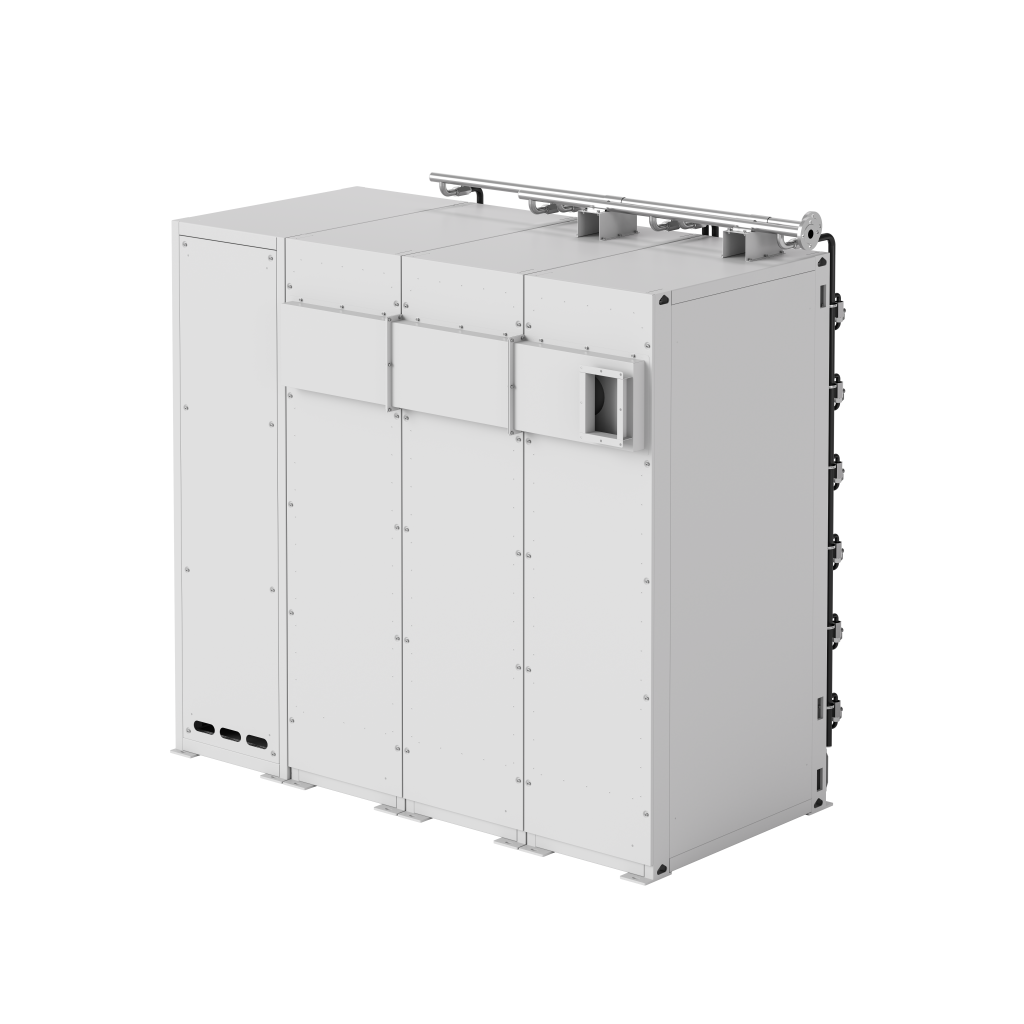

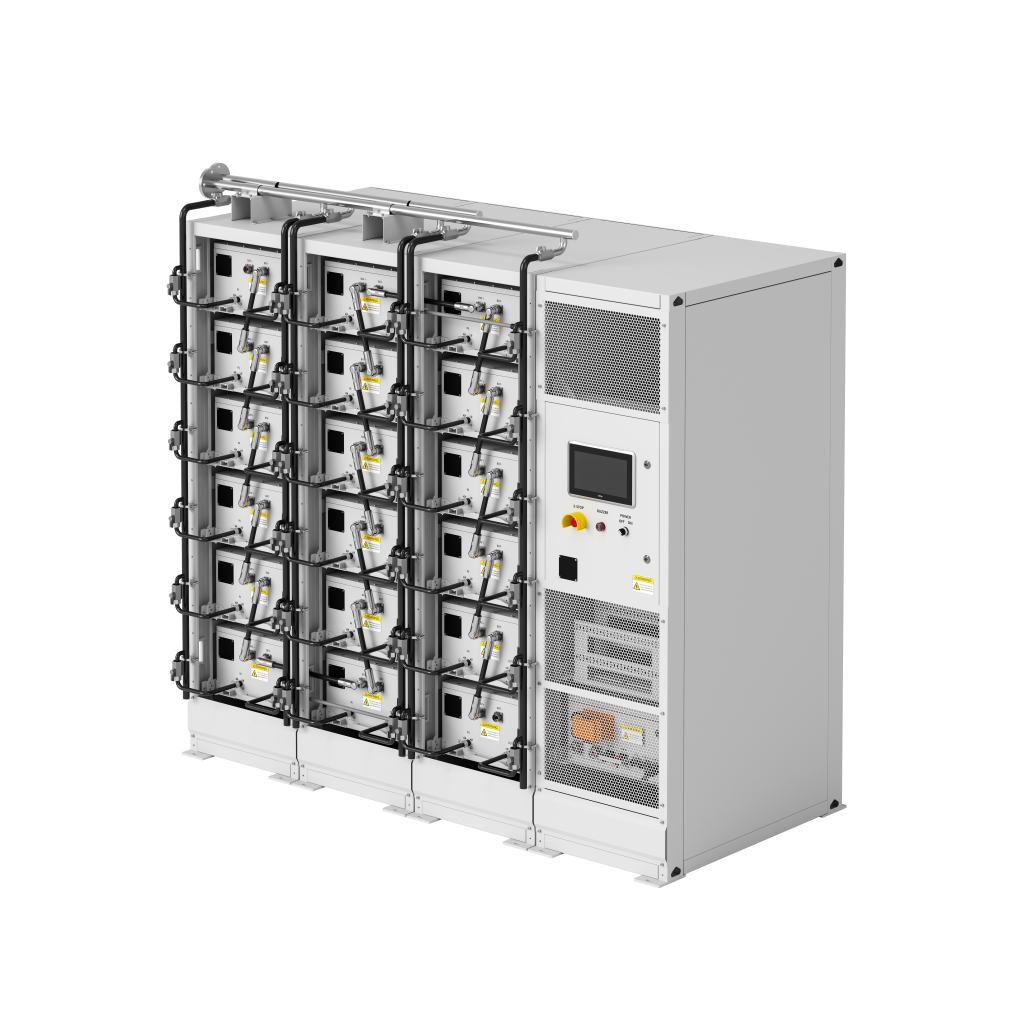

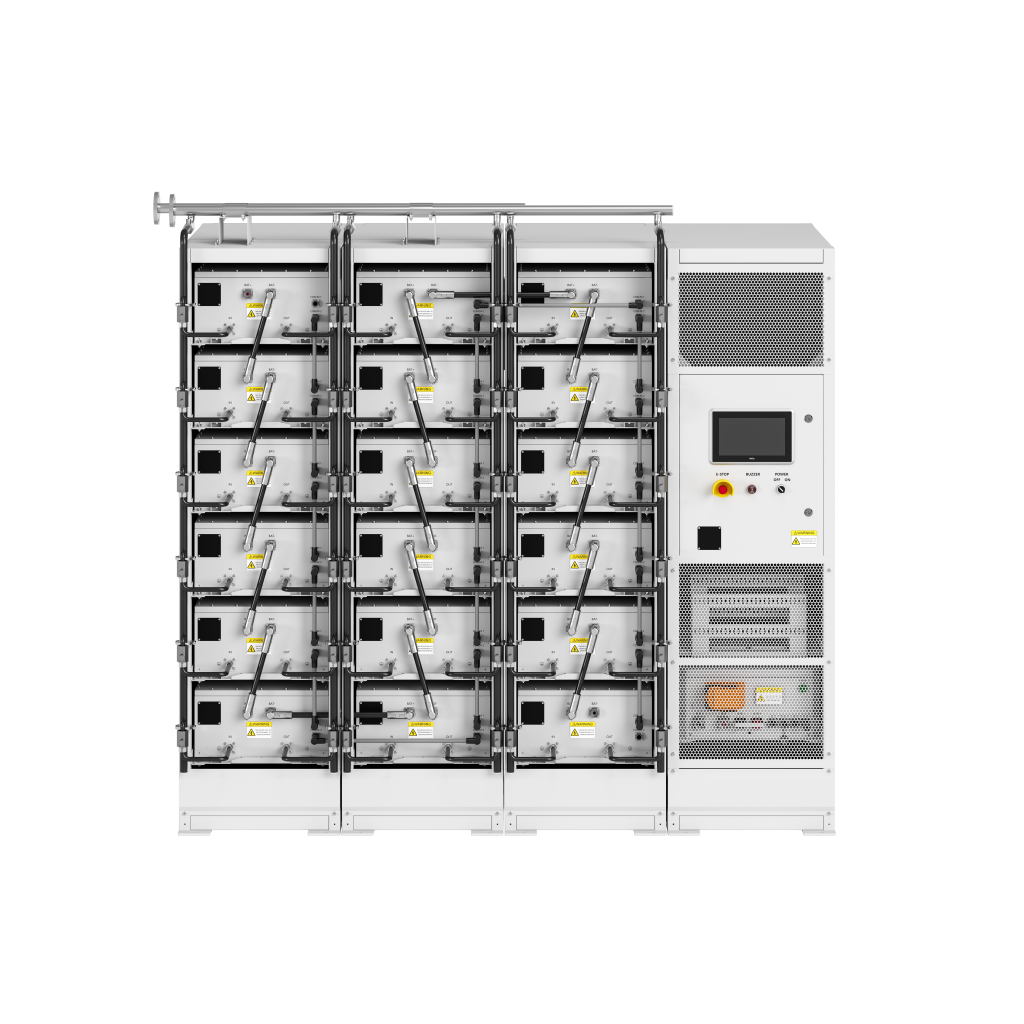

RS-L317
Racern's most distinguished products
RS-L317
With a maximum operating voltagereaching up to DC 1000V and modules capable of drawing currents up to 300A, it proves itselfsuitable for high-capacity energy solutions.
Technical Specifications
| Nominal Voltage (V) | 927.4 |
| Voltage Range (V) | 720~1051.2 |
| Nominal Energy (kWh) | 294.0 (18 battery modules in series) |
| Standard Charge/Discharge Current (A) | 158.5 |
| Maximum Continuous Charge/Discharge Current (A) | 300 |
| Operating Temperature | Charge: 0℃~60℃ | Discharge: -20℃~60℃ |
| Storage Requirements | Temperature: -35℃~60℃ | Humidity: 10%～85% |
| Cycle: 40%SOC for 3 months, 70%SOC for 6 months | |
| External Communication Port | CAN / RS485 / LAN |
| Class Compliance | LR |
| Explosion-proof Measures | Installation of explosion-proof valve |
| Cooling Method | Liquid cooling |
| Leak detection | NO |
| Note | One BABOX manages 6 strings in parallel at max |
